Product Parameters
- Model: XM-SX-ARC
- Material: Segment bronze wheel + alloy steel arc worm
- Spec / Module: Large module / custom sector angle
- MOQ: 1 set
- Applications: Heavy oscillating drives, gates, metallurgy
- Standards: Drawing-based QC
Description

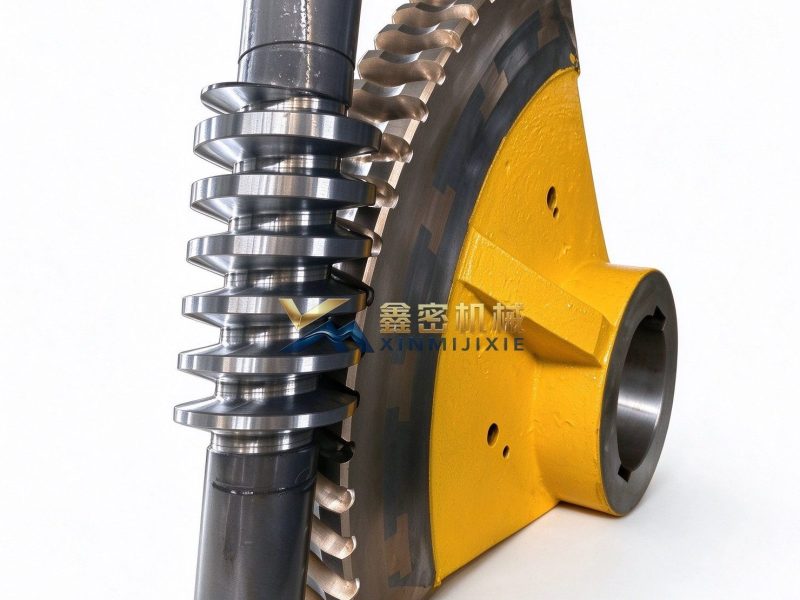

This transmission set pairs an arc-tooth worm with a sector (segment) worm wheel. Unlike continuous 360° wheels, the sector only carries teeth in the working angle — ideal for oscillating gates, metallurgy swing axes and heavy indexing within a fixed stroke.
Arc-tooth geometry enlarges contact area under impact loads, reducing pitting versus cylindrical worms. Wheels use composite hubs with tin-bronze tooth segments; worms are alloy steel, heat-treated and precision finished.
Xinmi designs centre distance, sector angle and torque capacity from your drawings or worn samples, and can supply matched pairs or single replacement parts with export packing.
Product Parameters
| Model | XM-SX-ARC |
|---|---|
| Material | Segment bronze wheel + alloy steel arc worm |
| Spec / Module | Large module / custom sector angle |
| MOQ | 1 set |
| Applications | Heavy oscillating drives, gates, metallurgy |
| Standards | Drawing-based QC |
FAQs
What is XM-SX-ARC typically used for?
XM-SX-ARC is supplied for OEM equipment. Typical applications: Heavy oscillating drives, gates, metallurgy
Can XM-SX-ARC be customized from our drawings?
Yes. XM-SX-ARC is produced to drawing. Send 2D/3D files or a sample — we quote within 24 hours.
What material is used on XM-SX-ARC?
XM-SX-ARC uses: Segment bronze wheel + alloy steel arc worm
What is the MOQ for XM-SX-ARC?
Typical MOQ for XM-SX-ARC is 1 set. Trial lots can be discussed.
